Specification (mm) | Shape | Compressive Strength(MPa/m³) | Average Density(kg/m³) | ||
With Groove | Flat | Average Value | Min Value | ||
<1500x600x50 |
| √ | ≥3.5 | ≥3.0 | ≤525 |
<1800x600x50 |
| √ | ≥3.5 | ≥3.0 | ≤525 |
<2000x600x50 | √ | ≥3.5 | ≥3.0 | ≤525 |
Performance | B04 Grade | B05 Grade | B06 Grade | |
Dry Density(kg/m³) | ≤425 | ≤525 | ≤625 | |
Compressive Strength(Mpa/m³) | A2.5 | A3.5 | A5.0 | |
Dry Value | Thermal Conductivity | 0.11 | 0.13 | 0.15 |
Drying Shrinkage(mm/m) | ≤0.5 | |||
Freezing Resistance | Quality Loss(%) | ≤3.0 | ≤3.0 | ≤5.0 |
Strength after Freezing(Mpa) | ≥2.0 | ≥3.2 | ≥4.0 | |
Softening Factor | 0.88 | |||
Penetration Resistance | 88.3 | |||
Fire Resistance( Hour) | ≥4 hour(Panel Wall Thickness:100mm) | |||
Average Sound Insulation(dB) | 40.8(Panel thickness:100mm, with double sides putty) | |||
Size Deviation(mm) | Length±2, Width±1, Thickness±1 | |||
Common Mm | Wide 600 ,Thick 50,75 |

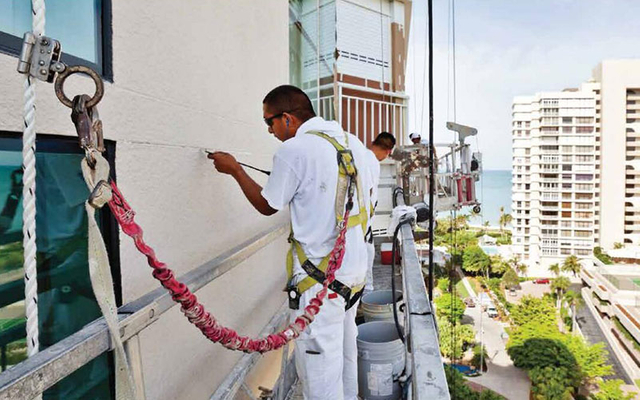

Ecotrend AAC Thermal Insulation panel is widely use as external wall insulation layer to provide the building performance with heat insulation.
