Specification (mm) | Shape | Compressive Strength(MPa/m³) | Average Density(kg/m³) | ||
With Groove | Flat | Average Value | Min Value | ||
<2000x600x75 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
<3000x600x100 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
<3500x600x125 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
<4200x600x150 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
<4800x600x200 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
Performance | B04 Grade | B05 Grade | B06 Grade | |
Dry Density(kg/m³) | ≤425 | ≤525 | ≤625 | |
Compressive Strength(Mpa/m³) | A2.5 | A3.5 | A5.0 | |
Dry Value | Thermal Conductivity | 0.11 | 0.13 | 0.15 |
Drying Shrinkage(mm/m) | ≤0.5 | |||
Freezing Resistance | Quality Loss(%) | ≤3.0 | ≤3.0 | ≤5.0 |
Strength after Freezing(Mpa) | ≥2.0 | ≥3.2 | ≥4.0 | |
Softening Factor | 0.88 | |||
Penetration Resistance | 88.3 | |||
Fire Resistance( Hour) | ≥ 4 hour(Panel Wall Thickness:100mm) | |||
Average Sound Insulation(dB) | 40.8(Panel thickness:100mm, with double sides putty) | |||
Size Deviation(mm) | Length±2, Width±1, Thickness±1 | |||
Common Mm | Wide 600 ,Thick 75,100,125,150,200 |
Thickness/mm | 75 | 100 | 125 | 150 | 175 | 200 |
Intensity of Pressure(N/m2) | Maximal Length (mm) | |||||
800 | 2000 | 3000 | 3500 | 4200 | 4800 | 4800 |
1000 | 2000 | 3000 | 3500 | 4200 | 4800 | 4800 |
1200 | 1960 | 2920 | 3400 | 4080 | 4640 | 4800 |
1400 | 1920 | 2840 | 3300 | 3960 | 4480 | 4800 |
1600 | 1880 | 2760 | 3200 | 3840 | 4320 | 4800 |
1800 | 1840 | 2680 | 3100 | 3720 | 4160 | 4800 |
2000 | 1800 | 2600 | 3000 | 3600 | 4000 | 4800 |
2200 | ------ | 2500 | 2850 | 3350 | 3750 | 4700 |

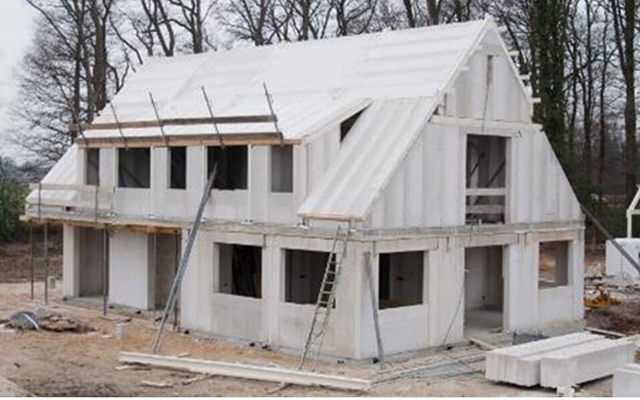

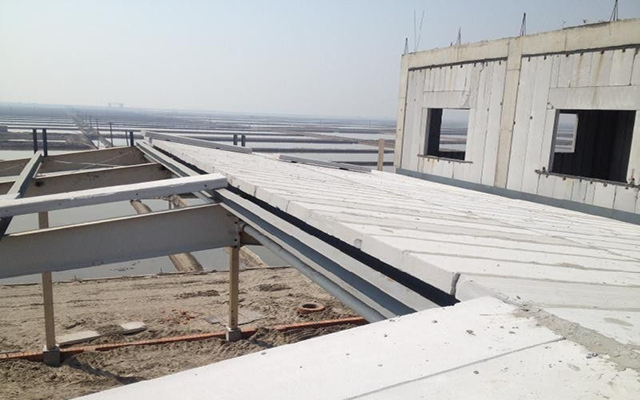

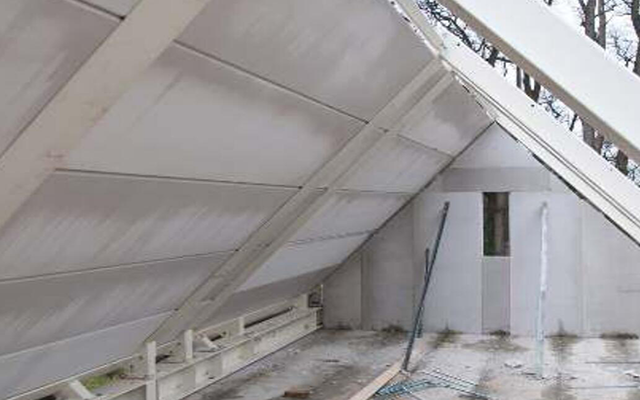

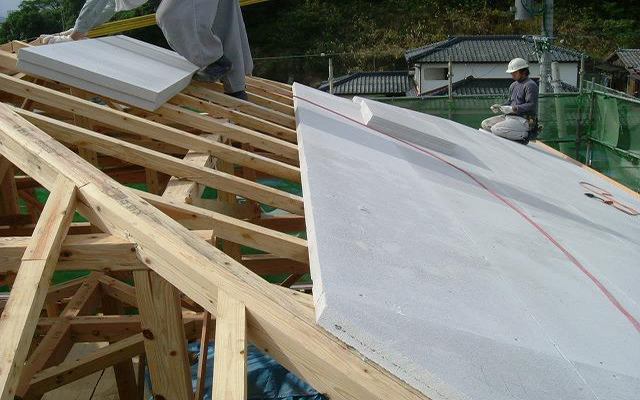

Ecotrend AAC roof panel is widely use as building roof insulation layer.
