ECOTREND AAC EXTERNAL PANEL

Home / Products / AAC Panel / AAC External Panel
Product Description
Brand Name:Ecotrend
Product Name:Ecotrend AAC External Panel
Product Introduction:
Ecotrend autoclaved aerated concrete panels are also commonly used for external walls.With it’s great thermal insulation capability, they surpass most other similar building materials in providing thermal comfort while saving energy and costs.

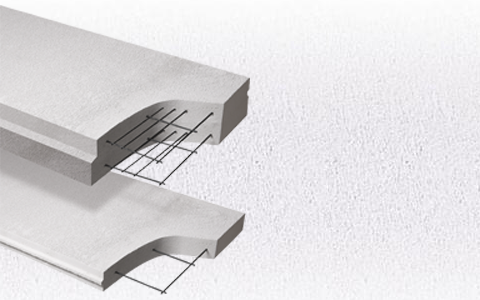

Ecotrend AAC reinforced panels improve the reliability and security of node strength in external walls. During the rotation and extension in plane of the connecting nodes of wall panels, Ecotrend AAC reinforced panels ensure that the walls can be adapted to the interlayer displacement in different directions of the main structure, and satisfies the need for the interlayer deformation of the main structure conforming to the seismic design intensity.
Specification:

Specification

(mm)

Shape

Compressive Strength(MPa/m³)

Average Density(kg/m³)

With Groove

Flat

Average Value

Min Value

<3500x600x100



≥3.5

≥3.0

≤525

<4500x600x120



≥3.5

≥3.0

≤525

<4800x600x150



≥3.5

≥3.0

≤525

<4800x600x200



≥3.5

≥3.0

≤525

Main Performance Index:

Performance

B04 Grade

B05 Grade

B06 Grade

Dry Density(kg/m³)

≤425

≤525

≤625

Compressive Strength(Mpa/m³)

A2.5

A3.5

A5.0

Dry Value

Thermal Conductivity

0.11

0.13

0.15

Drying Shrinkage(mm/m)

≤0.5

Freezing Resistance

Quality Loss(%)

≤3.0

≤3.0

≤5.0

Strength after Freezing(Mpa)

≥2.0

≥3.2

≥4.0

Softening Factor

0.88

Penetration Resistance

88.3

Fire Resistance( Hour)

≥ 4 hour(Panel Wall Thickness:100mm)

Average Sound Insulation(dB)

40.8(Panel thickness:100mm, with double sides putty)

Size Deviation(mm)

Length±2, Width±1, Thickness±1

Common Mm

Wide 600 ,Thick 75,100,120,150,200

Recommended Size:

Thickness (mm)

50

75

100

120

150

175

200

Maximal Length (mm)

1500

2800

4000

4500

4800

4800

4800

Distinctive Advantages:
(1) Impermeable and moisture-proof:
Ecotrend AAC products contain independent, closed bubbles and micro-holes, generally 1~2mm in diameter, which can effectively organize the diffusion of water molecules and absorb water and release moisture. When ordinary external wall painting materials are used, the impermeability of the AAC wall is 80% higher than that of clay bricks, which can greatly reduce the humidity inside the building and help prevent condensation and mildew.
(2) Seismic:
Due to the lightweight of Ecotrend AAC products, the self-weight of the buildings using AAC products is greatly reduced, thereby greatly improving the earthquake resistance of the building.
Application:

Ecotrend AAC external panel is widely use as external wall insulation layer.
