Specification (mm) | Shape | Compressive Strength ( MPa/m³) | Average Density(kg/m³) | ||
With Groove | Flat | Average Value | Min Value | ||
<2800x600x75 | √ |
| ≥3.5 | ≥3.0 | ≤525 |
<4000x600x100 | √ |
| ≥3.5 | ≥3.0 | ≤525 |
<4500x600x120 | √ |
| ≥3.5 | ≥3.0 | ≤525 |
<4800x600x125 | √ |
| ≥3.5 | ≥3.0 | ≤525 |
<4800x600x150 | √ |
| ≥3.5 | ≥3.0 | ≤525 |
Performance | B04 Grade | B05 Grade | B06 Grade | |
Dry Density(kg/m³) | ≤425 | ≤525 | ≤625 | |
Compressive Strength(Mpa/m³) | A2.5 | A3.5 | A5.0 | |
Dry Value | Thermal Conductivity | 0.11 | 0.13 | 0.15 |
Drying Shrinkage(mm/m) | ≤0.5 | |||
Freezing Resistance | Quality Loss(%) | ≤3.0 | ≤3.0 | ≤5.0 |
Strength after Freezing(Mpa) | ≥2.0 | ≥3.2 | ≥4.0 | |
Softening Factor | 0.88 | |||
Penetration Resistance | 88.3 | |||
Fire Resistance( Hour) | ≥ 4 hour(Panel Wall Thickness:100mm) | |||
Average Sound Insulation(dB) | 40.8(Panel thickness:100mm, with double sides putty) | |||
Size Deviation(mm) | Length±2, Width±1, Thickness±1 | |||
Common Mm | Wide 600 ,Thick 75,100,120,125,150, |
Thickness (mm) | 50 | 75 | 100 | 120 | 150 | 175 | 200 |
Maximal Length (mm) | 1500 | 2800 | 4000 | 4500 | 4800 | 4800 | 4800 |

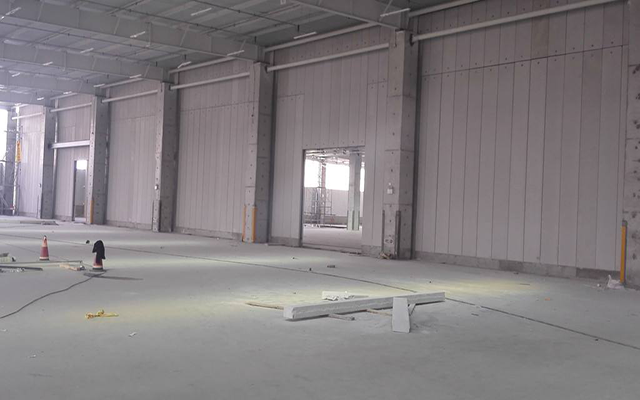

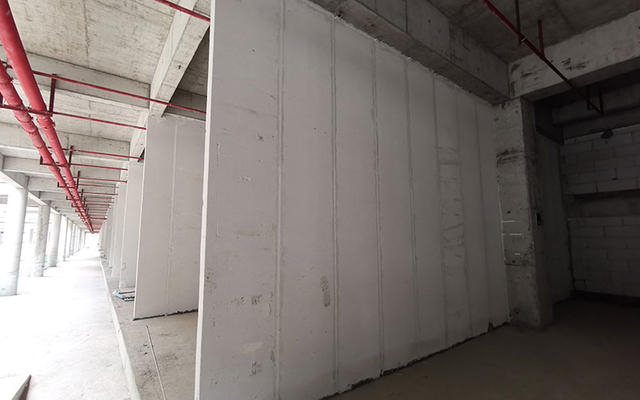

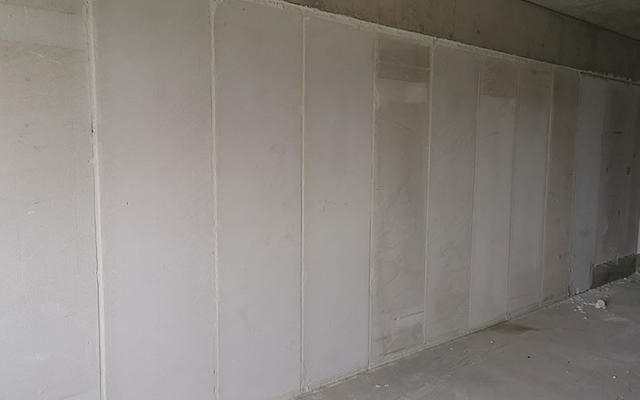

Ecotrend AAC internal panel is widely use as internal wall insulation layer.
