Specification(mm) | Shape | Compressive Strength(MPa/m³) | Average Density(kg/m³) | ||
With Groove | Flat | Average Value | Min Value | ||
<2400x600x100 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
<2700x600x125 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
<3100x600x150 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
<4000x600x200 | √ |
| ≥5.0 | ≥4.0 | ≤625 |
Performance | B04 Grade | B05 Grade | B06 Grade | |
Dry Density(kg/m³) | ≤425 | ≤525 | ≤625 | |
Compressive Strength(Mpa/m³) | A2.5 | A3.5 | A5.0 | |
Dry Value | Thermal Conductivity | 0.11 | 0.13 | 0.15 |
Drying Shrinkage(mm/m) | ≤0.5 | |||
Freezing Resistance | Quality Loss(%) | ≤3.0 | ≤3.0 | ≤5.0 |
Strength after Freezing(Mpa) | ≥2.0 | ≥3.2 | ≥4.0 | |
Softening Factor | 0.88 | |||
Penetration Resistance | 88.3 | |||
Fire Resistance( Hour) | ≥ 4 hour(Panel Wall Thickness:100mm) | |||
Average Sound Insulation(dB) | 40.8(Panel thickness:100mm, with double sides putty) | |||
Size Deviation(mm) | Length±2, Width±1, Thickness±1 | |||
Common Mm | Wide 600 ,Thick 75,100,125,150,200 |
Thickness(mm) | 100 | 125 | 150 | 175 | 200 |
Intensity of Pressure(N/m2) | Maximal Length (mm) | ||||
2400 | 2400 | 2700 | 3100 | 3500 | 4000 |
2600 | 2330 | 2630 | 3030 | 3430 | 3950 |
2800 | 2260 | 2560 | 2960 | 3360 | 3900 |
3000 | 2200 | 2500 | 2900 | 3300 | 3850 |
3200 | 2130 | 2460 | 2830 | 3230 | 3780 |
3400 | 2060 | 2430 | 2760 | 3160 | 3730 |
3600 | 2000 | 2400 | 2700 | 3100 | 3670 |
3800 | 1950 | 2350 | 2650 | 3050 | 3620 |
4000 | 1900 | 2300 | 2600 | 3000 | 3530 |
4200 | 1840 | 2240 | 2560 | 2960 | 3480 |
4400 | 1780 | 2180 | 2520 | 2920 | 3430 |
4600 | 1720 | 2120 | 2480 | 2880 | 3400 |
4800 | 1660 | 2060 | 2440 | 2840 | 3360 |
5000 | 1600 | 2000 | 2400 | 2800 | 3340 |
Ecotrend AAC products contain a large number of micro-holes, with a dry density of 400~700kg/m³ and a thermal conductivity of 0.08~0. 18w/(m*k), Ecotrend AAC wall insulation ability is 3~4 times that of ordinary clay bricks , 4~8 times that of ordinary concrete, which greatly reduces the energy consumption of the building and is eco friendly.

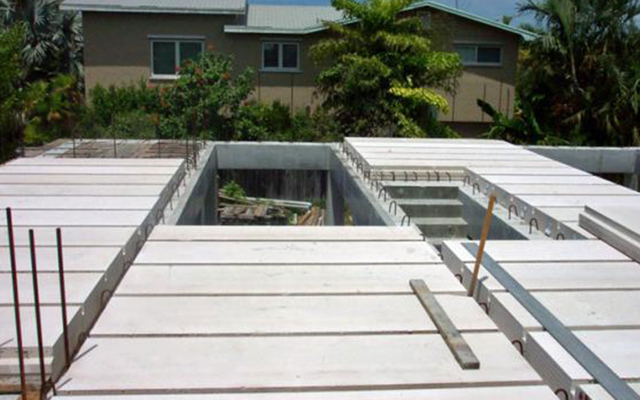

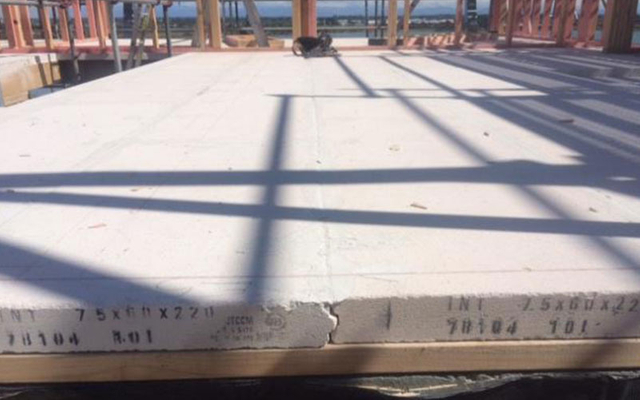

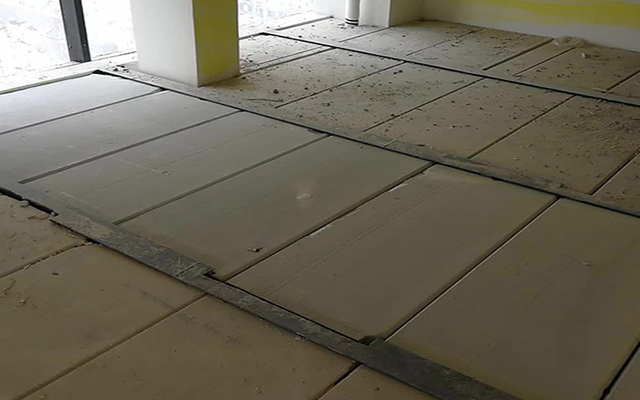

Ecotrend AAC floor panel is widely use as building floor insulation.
