AERATED AUTOCLAVED CONCRETE PANEL (ECOTREND AAC PANEL)

Home / Products / AAC Panel
Description of Product :
ECOTREND plate is a kind of rust-proof three-dimensional steel mesh frame built on ECOTREND’s advanced production process technology with built-in patented technology, which is made of quartz sand, lime, cement and gas-generating materials. It is formed by high temperature, high pressure and steam curing. Porous lightweight board is a new type of green building wall innovation material.

Features of Product :
The product has the characteristics of convenient installation, wide application range, high construction accuracy, etc., and can greatly improve the use efficiency of the building.
ECOTREND AAC PANEL COMPARED WITH TRADITIONAL BUILDING MATERIALS

The comparison among AAC/ALC new building material and traditional materials

S/NO

Description

Autoclaved Aerated Lightweight Concrete(ALC)Panel
(with Reinforced Steel Mesh)

Hollow Core Panel Product

Brick

Precast Concrete



Product Images









1

Working Density

770kg/m³

1680kg/m³

1800kg/m³

2400kg/m³

2

Fire Rating(Based on
lowest of intergrity &
Insulation)

4 Hours

1 Hour

1 Hour

1 Hour

3

Thermal Conductivity(K Value)

0.13

0.656

0.807

1.442

4

U-Value(5mm skim Coat
on both sides)

1.05

2.983

3.261

3.967

5

Sound Insulation

STC 43(100mm Thickness)

STC 44(90mm Thickness)

STC 35-40

STC 45

6

Compression Strength

>=4.5N/mm²

15.0N/mm²

3.5N/mm²

>=17N/mm²

7

Strength and Robustess

Meet Severe Duty(SD)Test
 Requirement

Meet Severe Duty Test
 Requirement(With infill)

Meet SD Test Requirement

Meet SD Test Requirement

8

Water Absorption

Passed (based on BS EN 772)

Passed (based on SS 271)

Passed (based on SS 271)

Passed (based on SS 271)

9

Heavy Weight Anchorage

Can hang heavy loads without
grouting because it's solid panel

Need toinfill hollow holes
 with grout before hanging
any heavy loads

Can hang heavy loads
 without grouting

Can hang heavy loads
 without grouting

10

Installation Team

Minimum 2 persons

Minimum 4 persons

Minimum 1 persons

Minimum 4 persons

11

Installation Producivity

20-40m²/man-day

10-20m²/man-day

5-10m²/man-day

10-20m²/man-day

12

Curing Time

Fully cured in autoclaved machine

Not fully cured before delivery
(fully cured in 28 days)

Not fully cured before
delivery

Not fully cured before
delivery

13

Wastage

2-5%

10-30%

3-5%

3-5%

14

Lintel and stiffener Usage

Low

High

High

High

15

Building Structure

Saving of structure cost 15-20%

No Saving

No Saving

No Saving

16

Transportation

Much less trips are
required for delivery
due to it's lightweight

Much more trips required

Much more trips required

Much more trips required

17

Rectification Works

Less rectification works
 needed because only
skim coat is uesd

More rectification works
due to plastering on
 surfaces

More rectification works
due to plastering on
 surfaces

More rectification works
due to plastering on
 surfaces

18

Reusability

Panels can be cut and reuse

NO

NO

NO

19

Energy Saving

Saving aircon energy of upto 30%

Not energy efficient

Not energy efficient

Not energy efficient

20

Green Product

Greatly reduce CO2 Emission duo to it's great thermal insulation capability and lightweight

Weak thermal insulation
 and heavy weight increase
 energy uasge and CO2 emission

Weak thermal insulation
 and heavy weight increase
 energy uasge and CO2 emission

Weak thermal insulation
 and heavy weight increase
 energy uasge and CO2 emission

ECOTREND AAC PANEL PERFORMANCE INDEX

intensity level

A2.5

A3.5

A5.0

A7.5

dry density level

B04

B05

B06

B07

dry density (kg / m3)

≤ 425

≤ 525

≤ 625

≤ 725

compressive strength MPa

average value

≥ 2.5

≥ 3.5

≥ 5.0

≥ 7.5

single group minimum value

≥ 2.0

≥ 2.8

≥ 4.0

≥ 6.0

dry shrinkage mm / M

rapid test method

≤ 0.8

≤ 0.8

≤ 0.8

≤ 0.8

standard method

≤ 0.5

≤ 0.5

≤ 0.5

≤ 0.5

frost resistance

quality loss /% ≤

≤ 5.0

strength after freezing MPa ≥

More than 80% of the average cube compressive strength

thermal conductivity (thousand state) w / m.k ≤

0.12

0.14

0.16

0.18

ECOTREND AAC PANEL PRODUCT MODEL

Serial number

Product name

Specification L × B × H (mm)

Shape

With Groove

Flat

1

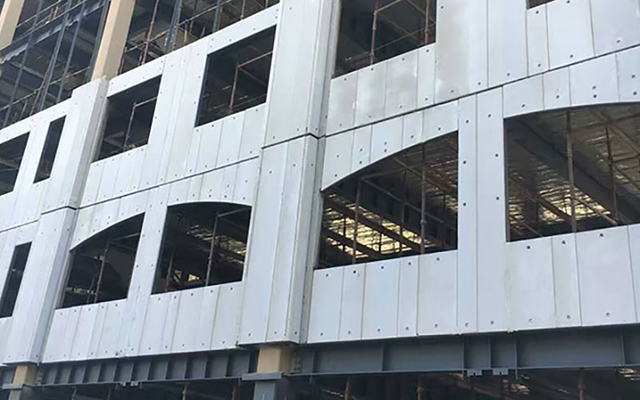

Exterior wall panel



≤4800×600×200



2

≤4800×600×175



3

≤4800×600×150



4

≤4500×600×125



5

≤3500×600×100



6

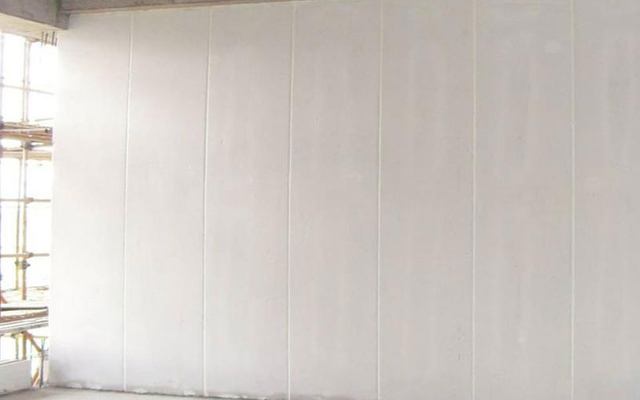

Inner wall panel



≤4800×600×150



7

≤4800×600×125



8

≤4000×600×100



9

≤3000×600×75



10

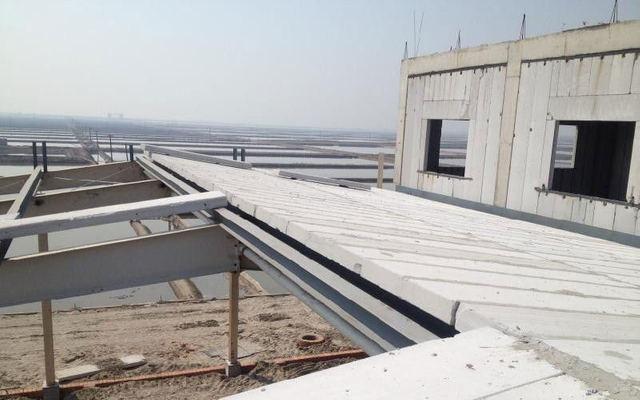

Roof panel



≤4800×600×200



11

≤4800×600×175



12

≤4200×600×150



13

≤3500×600×125



14

≤3000×600×100



15

≤2000×600×75



16

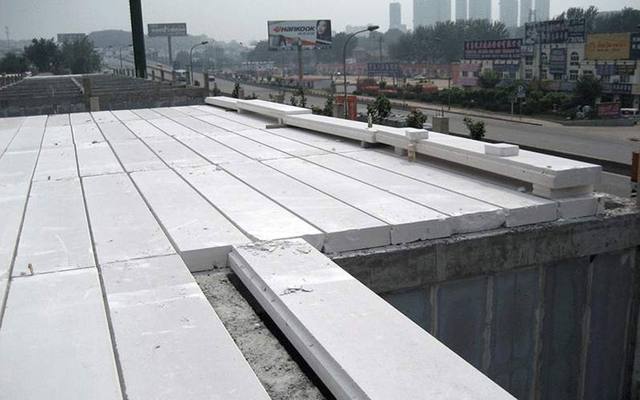

floor

≤4000×600×200



17

≤3500×600×175



18

≤3100×600×150



19

≤2700×600×125



20

≤2400×600×100



21

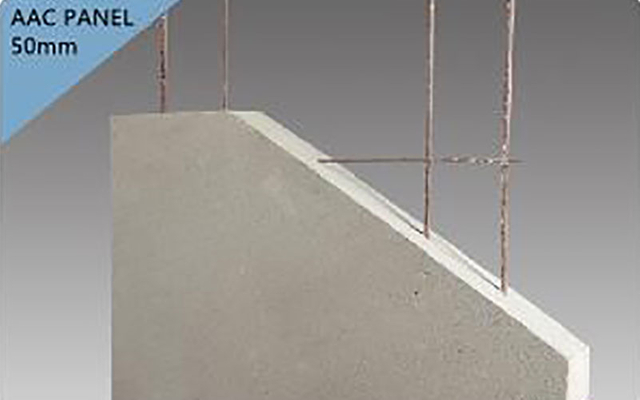

Thin insulation board



≤ 1500×600×50



22

≤ 1800×600×50



23

≤ 2000×600×50



ECOTREND ALC WALL PANEL MAIN INSTALLATION NODE
Internal Wall Panel Installation Node
External Wall Horizontal Installation Node
External Wall Vertical Installation Node
Roof、Floor Installation Node
