ECOTREND AAC INTERNAL WALL BLOCKS

Home / Products / AAC Block / AAC Internal Wall Blocks
Product Description
Brand Name:Ecotrend
Product Name:Ecotrend AAC Internal Wall Blocks
Product Introduction:

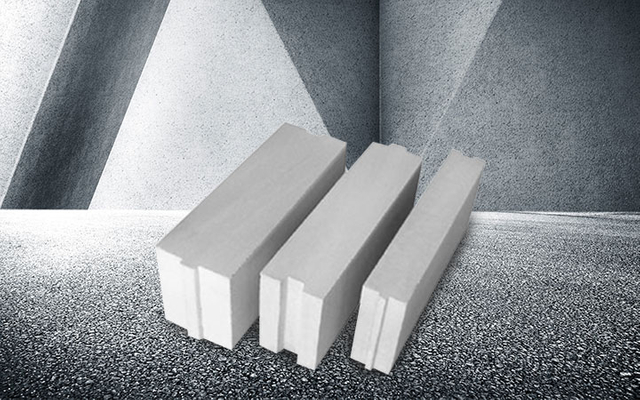

Ecotrend AAC internal wall blocks is a product which is designed as building internal wall material.
We designed internal wall blocks of different thickness, including 100mm, 120mm, 150mm, 200mm, 240mm, 250mm, 300mm, different thickness could meet different architectural design requirements.
Ecotrend AAC internal wall block has good performance on thermal insulation, sound insulation, fire resistance, moisture-proof, meanwhile, it is a non-toxic product, even it is at high temperature, no harmful gases is produced.
Prefabricated building is the development trend of building industry, AAC internal wall block is now widely applied as internal wall material of prefabricated buildings.
Specification:

Specification(mm)

Compressive Strength(MPa/m³)

Average Density(kg/m³)

Average Value

Min Value

600*100*200

≥3.5

≥3.0

≤525(625)

600*120*200

≥3.5

≥3.0

≤525(625)

600*150*200

≥3.5

≥3.0

≤525(625)

600*200*200

≥3.5

≥3.0

≤525(625)

600*240*200

≥3.5

≥3.0

≤525(625)

600*250*200

≥3.5

≥3.0

≤525(625)

600*300*200

≥3.5

≥3.0

≤525(625)

Remarks: In brackets, it is the requirements for B06 A3.5 Grade.

Main Performance Index:

Performance

B04 Grade

B05 Grade

B06 Grade

Dry Density(kg/m³)

≤425

≤525

≤625

Compressive Strength(Mpa/m³)

A2.0

A3.5

A5.0

Thermal Conductivity(W/(m*K)

0.09

0.12

0.132

Drying Shrinkage(mm/m)

0.3

0.3

0.32

Freezing Resistance

Quality Loss(%)

≤3

≤3

2.1

Strength after Freezing(Mpa)

≥2.0

≥3.0

4.4

Softening Factor

0.88

Penetration Resistance

88.3

Fire Resistance( Hour)

4hour( Block Wall Thickness:100mm)

Average Sound Insulation(dB)

40.8(Block thickness:100mm, with double sides putty)

Size Deviation(mm)

Length±2, Width±1, Thickness±1

Distinctive Advantages:
(1) Sound insulation:
Ecotrend AAC blocks have a large number of micro-holes. Due to the thickness and surface treatment of the wall, the noise can be reduced by 30-50 decibels. For example, the AAC block wall with a thickness of 100mm and double-sided putty can reduce the noise by 40.8 decibels.
(2) Fire resistance:
Ecotrend AAC blocks are inorganic substances, will not burn, and the porous structure of AAC has excellent fire resistance, harmful gases will not be produced at high temperatures, thermal conductivity is low, heat migration is slow, experiments show that the fire resistance limit of 100mm thick AAC wall is more than 4 hours, it is a class A fireproof material and is widely used in firewall engineering.
(3) Impermeable and moisture-proof:
Ecotrend AAC blocks contain independent, closed bubbles and micro-holes, generally 1~2mm in diameter, which can effectively organize the diffusion of water molecules and absorb water and release moisture. When ordinary external wall painting materials are used, the impermeability of the AAC wall is 80% higher than that of clay bricks, which can greatly reduce the humidity inside the building and help prevent condensation and mildew.
(4) Non-toxic:
There are no non-toxic gases or other toxic substances in AAC blocks, and no harmful gases will be produced at high temperatures.
Application:

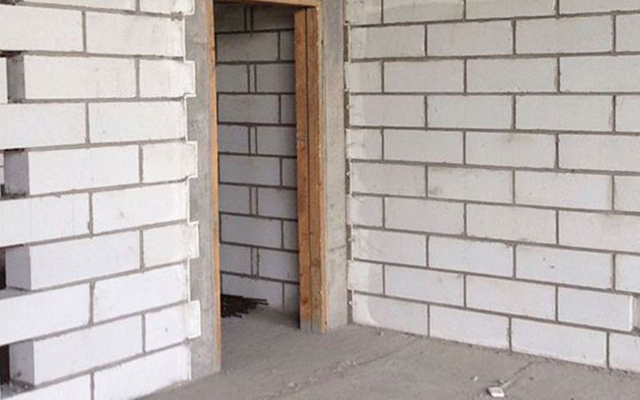

Ecotrend AAC block is widely used as internal building wall material to provide partition inside building space.
